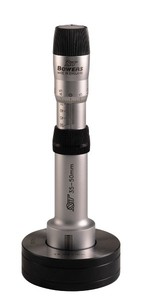

XTA Analogue Bore Gauge บอร์เกจแบบสเกล

Bowers XT Analogue Bore Gauges are an economical solution to accurate shop-floor bore measurement. The extended mechanical travel of these advanced two or three point gauges ensures that exchanging measuring anvils is now unnecessary. Their wide application range, 2 – 300mm, rugged construction and easy read scale, ensure both accuracy and ease of use. XT measuring heads and setting rings are supplied with UKAS certification.

Features

• Range 2 – 300 mm (0.080” – 12”)
• 2 – 6mm 2 point/ 6 – 300mm 3 point measurement
• Graduation 2-6mm: 0.001mm, 6-300mm: 0.005mm
• Tungsten carbide measuring faces on all 3-point heads from 12.5mm
• Blind bore measurement from 2mm – 6mm and above 12.5 mm (0.500”)
• Extensions available above 6mm for deep hole measurement
• Ratchet stop to ensure consistent measurement
• Setting rings included with individual instruments and sets
• UKAS certificates supplied as standard with all setting rings
• UKAS Certificate supplied as standard with all XT mechanical micrometers
• Serial number on all gauges
• Heads with special anvils available to suit specific customer requirements (e.g. groove measurement)
• Bore gauges manufactured according to DIN 863, part 4
• Supplied in fitted wooden case
