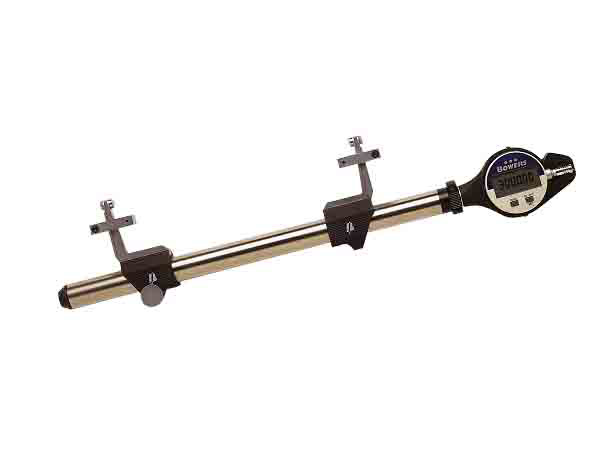

Universal Gauge

The Bowers Universal Gauge’s ingenious modular format enables it to be quickly configured to suit almost any measuring challenge. Whether measuring internally or externally, the Universal’s clever constant pressure device ensures accuracy and consistency of reading. The gauge’s findings are displayed on its built in clear digital readout.

The unique modular construction of the Bowers Universal Gauge facilitates the fitting of a large variety of measuring contacts and adaptors, enabling countless measuring tasks to be completed with ease. Accessories for the measurement of threads, grooves, splines, gears, hole centres, and many others are available as standard, whilst special adaptations for more unusual applications can be quoted on request.

Features

• Internal and external measurement
• Large measuring range possible 0 - 3000mm (0 - 118")
• Constant measuring force
• Digital or mechanical readout display
• Large range of accessories for standard measurement of threads, grooves, splines, diameters, lengths, shallow spigots and recess diameters etc
• Special anvil designs available P.O.A

Universal Gauge (extension compatible version) standard features:

• Range 30 - 250mm internal / 0 - 215mm external 15mm anvil travel
• Constant measuring pressure
• Digital or mechanical readout
• 150mm and 500mm extensions available. Can be screwed together in multiples (up to maximum 3m recommended)
• Measuring table and supports available for conversion to bench gauge for the measurement of small components
• Covers approx 90% of all applications

Universal Gauge (slide guideway version) standard features:

• Range 30 - 335mm internal / 0 - 300mm external 15mm anvil travel
• Slide guideway for rapid measuring contact alignment
• Constant measuring pressure
• Digital or mechanical readout
• Measuring table and supports available for conversion to bench gauge for the measurement of small components
• Covers approx 90% of all applications
