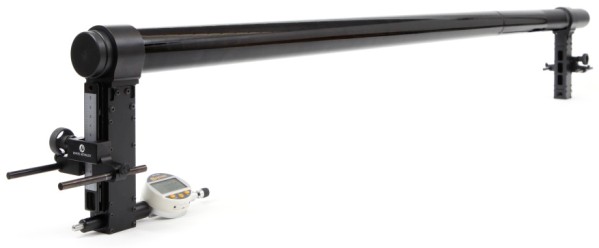

Bowers Carbon Fibre Comparator Beam Gauge

Designed to measure both internal and external diameters and lengths, the high modulus carbon fibre beam is stiff, lightweight and has an extremely low co-efficient of thermal expansion (CTE). Suitable for measuring high accuracy diameters and lengths up to 4000mm+.

Features

• Extremely lightweight even at 4m span
• Extremely low co-efficient of thermal expansion
• Measuring capacity of standard set: External: 0 > 1930mm Internal: 150 > 2150mm
• Modular design of beam allows infinate level of adjustment within the above ranges
• Additional 1000mm extensions add quickly and cost effectively to the gauge capacity
• Internal and external measurement 0 > 105 (150)mm measurement depth from component face
• 12mm anvil travel
• Digital or mechanical readout
• Tooling included for presetting gauge on Trimos horizontal machines

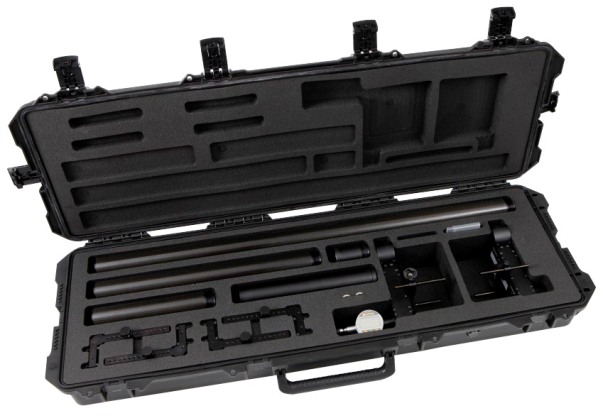

Sets include:

• pair gauge legs
• fixed leg tube
• moving leg tube
• 250mm CF ext. tube
• 500mm CF ext. tube
• 1000mm CF ext. tube
• Tooling to suit Trimos setting machine and storage/travel case
